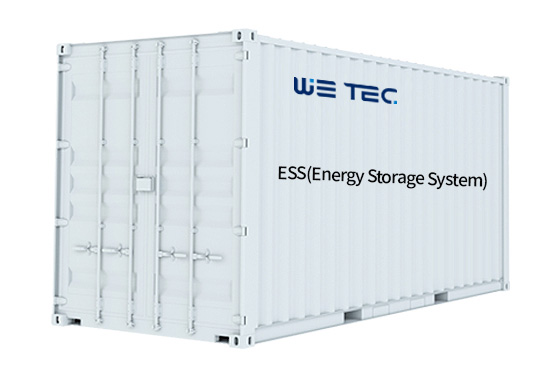

ESS Solution

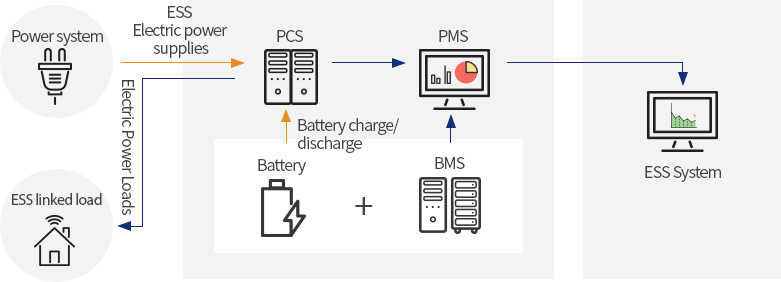

ESS Outline
- A system that increases energy efficiency by storing the power produced in the power system and supplying it when power is most needed.

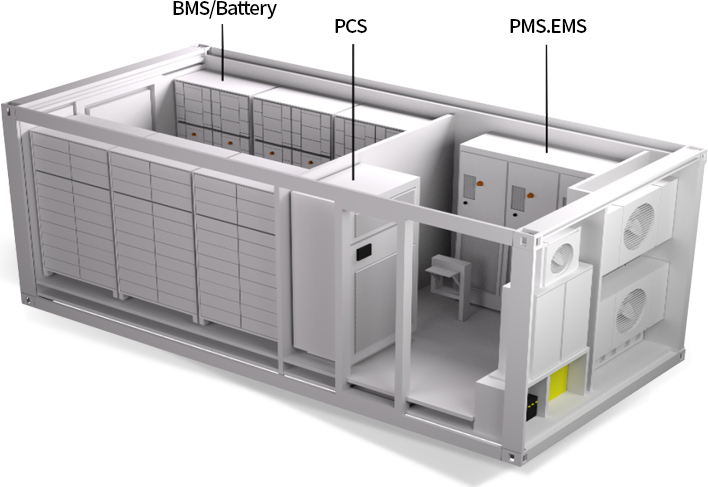

- PMS(Power Management System) : Perform overall ESS monitoring including collection and monitoring of battery, PCS operation information and environmental facilities
- BAT(Battery) : Perform charging and discharging of Grid, and renewable energy generation.
- EMS(Energy Management System) : Perform overall ESS monitoring including collection and monitoring of battery, PCS operation information and environmental facilities
- PCS(Power Conditioning System) : Inter-conversion control between Grid, renewable energy generation and battery DC power(AC/DC)
- BMS(Battery Management System) : Measure the performance of battery and perform operation, control, protection and communication function of battery system

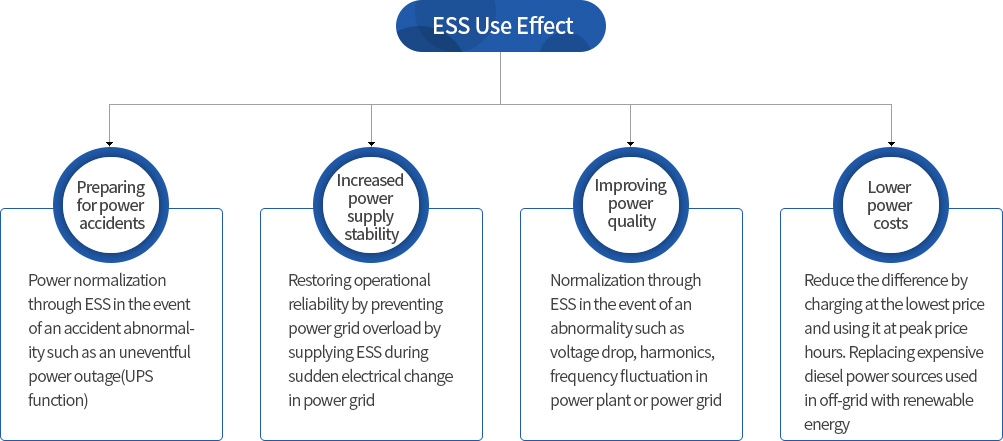

ESS Utilization
- 1. Convenient & various charging method
- Charging electricity in night time with low-cost
- Various charge using solar module
- 2. High-efficiency Li-ion battery
- High energy density, Excellent Charge and discharge efficiency
- Stability for battery fire using fire retardant case partition wall
- 3. Uninterruptible power supplies function
- UPS function that can be linked to the power supply makes the system more stable to operate
- 4. Short charging time
- Li-ion battery provides high charging / discharging efficiency compared to other batteries
- 5. Solar panel charging
- Possible to charge with solar module and expand it from 200W to 3KW according to customer’s demand.
ESS Type
| Small ESS (1~3KW/ For domestic, Public, Commercial use) |
Medium scale ESS (4~500KW/ For Factory, Building use) |
Large scale ESS (Power Plant) |
|---|---|---|
| It is an electric energy storage device based on a technologically optimized battery management system, that performs best at small size |
It is an electric energy storage device based on a technologically optimized battery management system, that performs best at medium size |
It is an electric energy storage device based on a technologically optimized battery management system, that performs best at large size |
